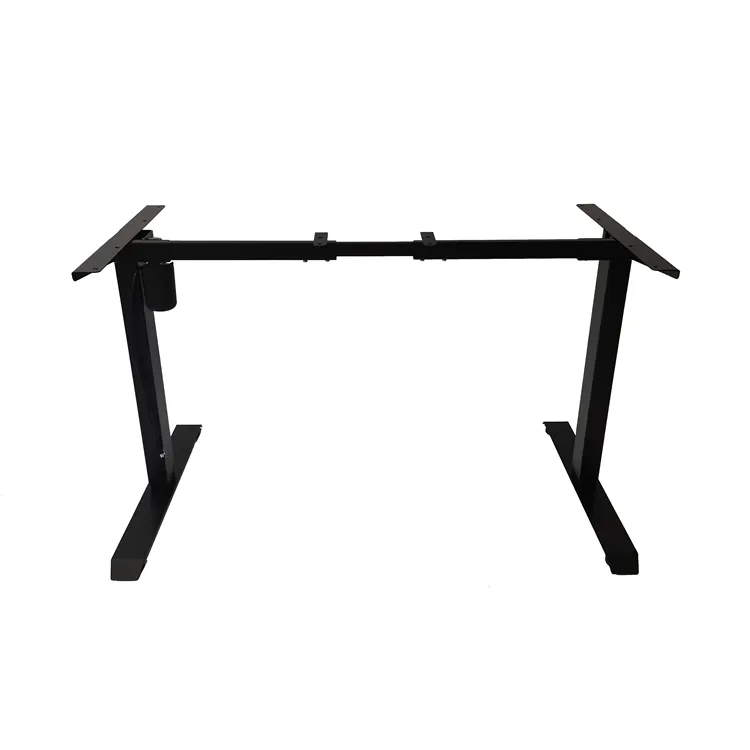

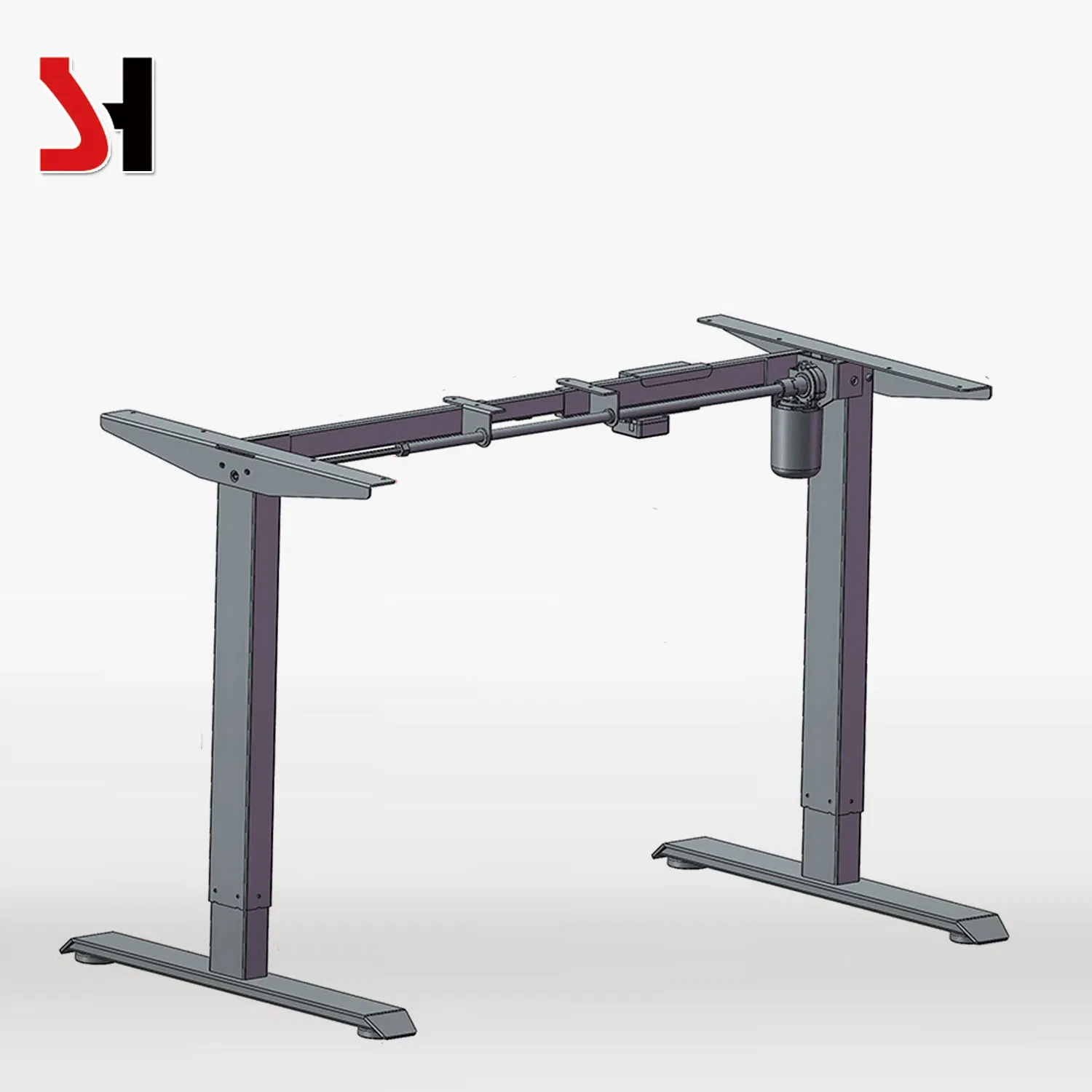

Electric Height Adjustable Single Motor Sit Standing Desk Base
SHB240-D500-2 Specifications Product Name Single Motor Metal Height Adjustable Desk Frame MOTORMotor Quantity One Working Noise50 - 55 dBMotor Rated Power70 WLIFT COLUMNLift Leg Style2 stages; Invert; With Hole Lift Tube Material Carbon Steel Q235Lift Tube Size 85*50*1.5 /80*50*1.5 mm;70*70*1.5/65*6......
Send Inquiry
Product Description

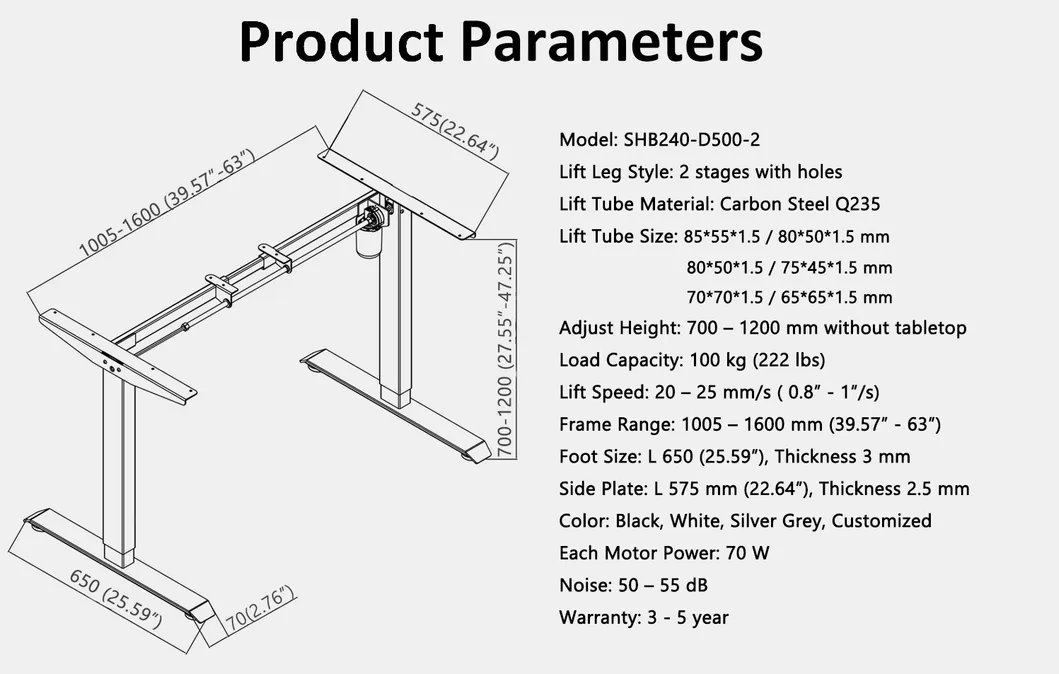

| SHB240-D500-2 Specifications | |
| Product Name | Single Motor Metal Height Adjustable Desk Frame |
| MOTOR | |
| Motor Quantity | One |
| Working Noise | 50 - 55 dB |
| Motor Rated Power | 70 W |
| LIFT COLUMN | |
| Lift Leg Style | 2 stages; Invert; With Hole |
| Lift Tube Material | Carbon Steel Q235 |
| Lift Tube Size | 85*50*1.5 /80*50*1.5 mm; 70*70*1.5/65*65*1.5 mm; 80*50*1.5/75*45*1.5 mm; |
| Lift Speed | 20 - 25 mm/s (0.78 - 1 inch per second) |
| DESK FRAME | |
| Adjust Height | 700 - 1200 mm (27.5 - 47.2 inches) Without Tabletop |
| Load Capacity | 100 kg (222 lbs) |
| Frame Range | 1005 - 1600 mm (39.5 - 63 inches) |
| Available Tabletop Size | Length From 1100 - 1800 mm |
| Depth From 600 - 800 mm | |
| Thickness From 18 - 30 mm | |
| Foot Size | L 650 mm (25.6 inches), thickness 3 mm |
| Side Plate Size | L 575 mm (22.6 inches), thickness 2.5 mm |
| Frame Color Available | White(RAL 9016), Black(RAL 9004), Grey(RAL9016) or (RAL 7045), Accept Customization |
| CONTROL BOX & HANDSET | |
| Voltage Available | 110 - 240 V |
| Duty Cycle | 5 min.on and 18 min.off |
| Bluetooth APP | Available |

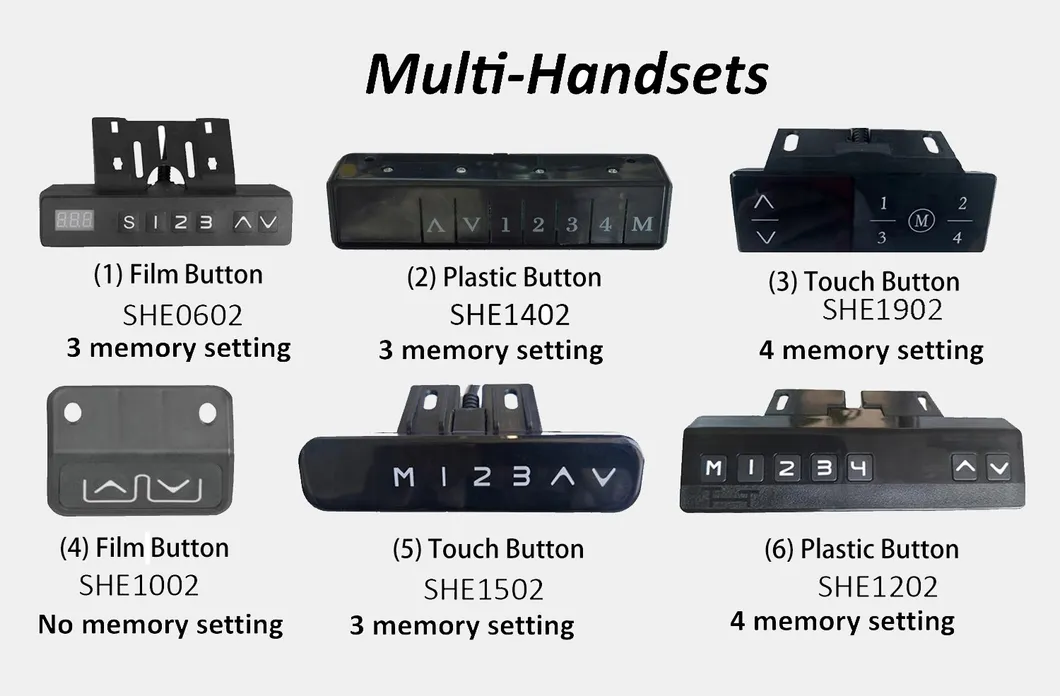

| Handset | LED Display; Memory Setting |
| OTHER | |
| Package Size | L1050 * W260 * H190 mm |
| Gross Weight | 22 kg (49 lbs) |
| Certification | ISO9001, CE, ROHS, SAA, CTUVUS, KC, BIFMA |
| Warranty | A: 3 years Warranty For Accessories Related To Electricity |
| B: 5 years Warranty For Other Parts. | |
