Health Equipment Metal Frame Sit Stand Desk Furniture
SHB320-Z650-4 Specifications Product Name Dual Motor Metal Height Adjustable Desk Frame MOTORMotor Quantity TwoWorking Noise40 - 50 dBEach Motor Rated Power70 WLIFT COLUMNLift Leg Style3 stages; Upward; Without Hole Lift Tube Material Carbon Steel Q235Lift Tube Size 80*50*1.5 / 75*45*1......
Send Inquiry
Product Description

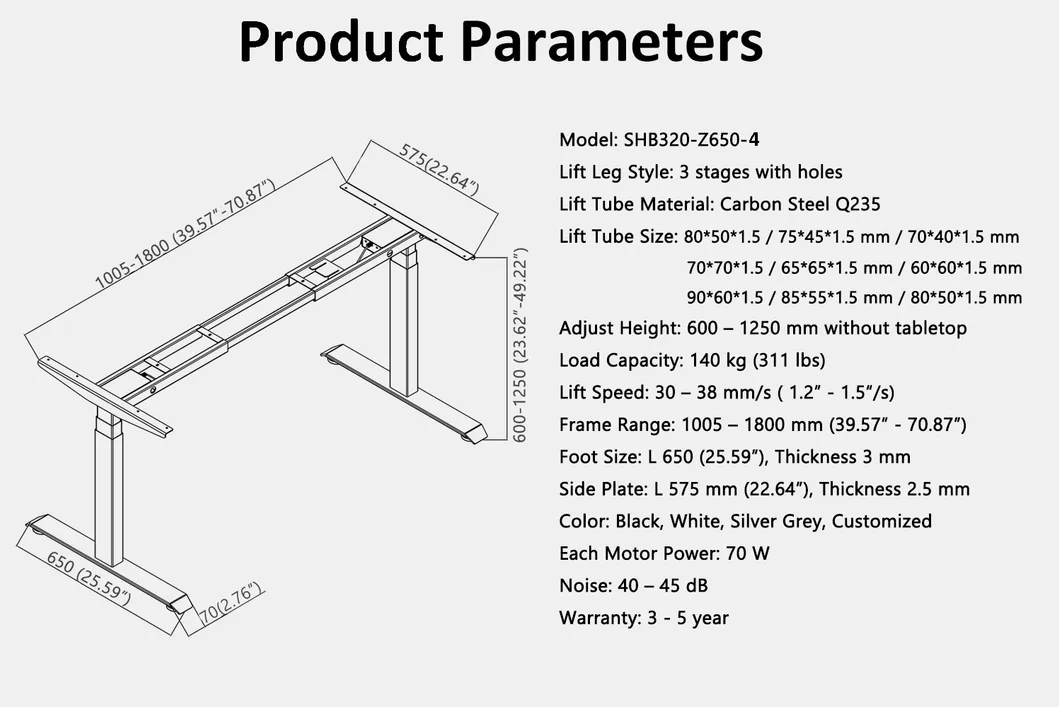

| SHB320-Z650-4 Specifications | |

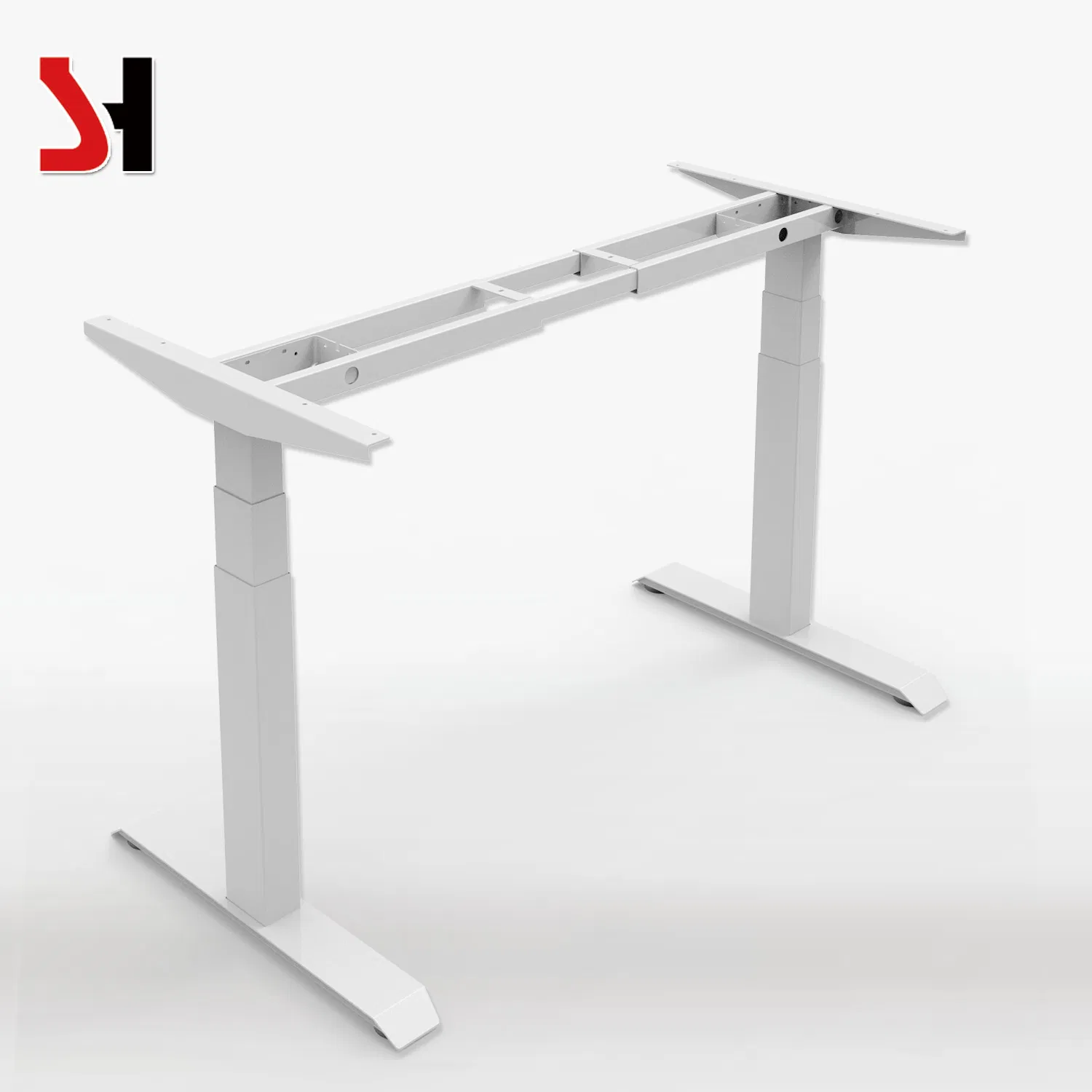

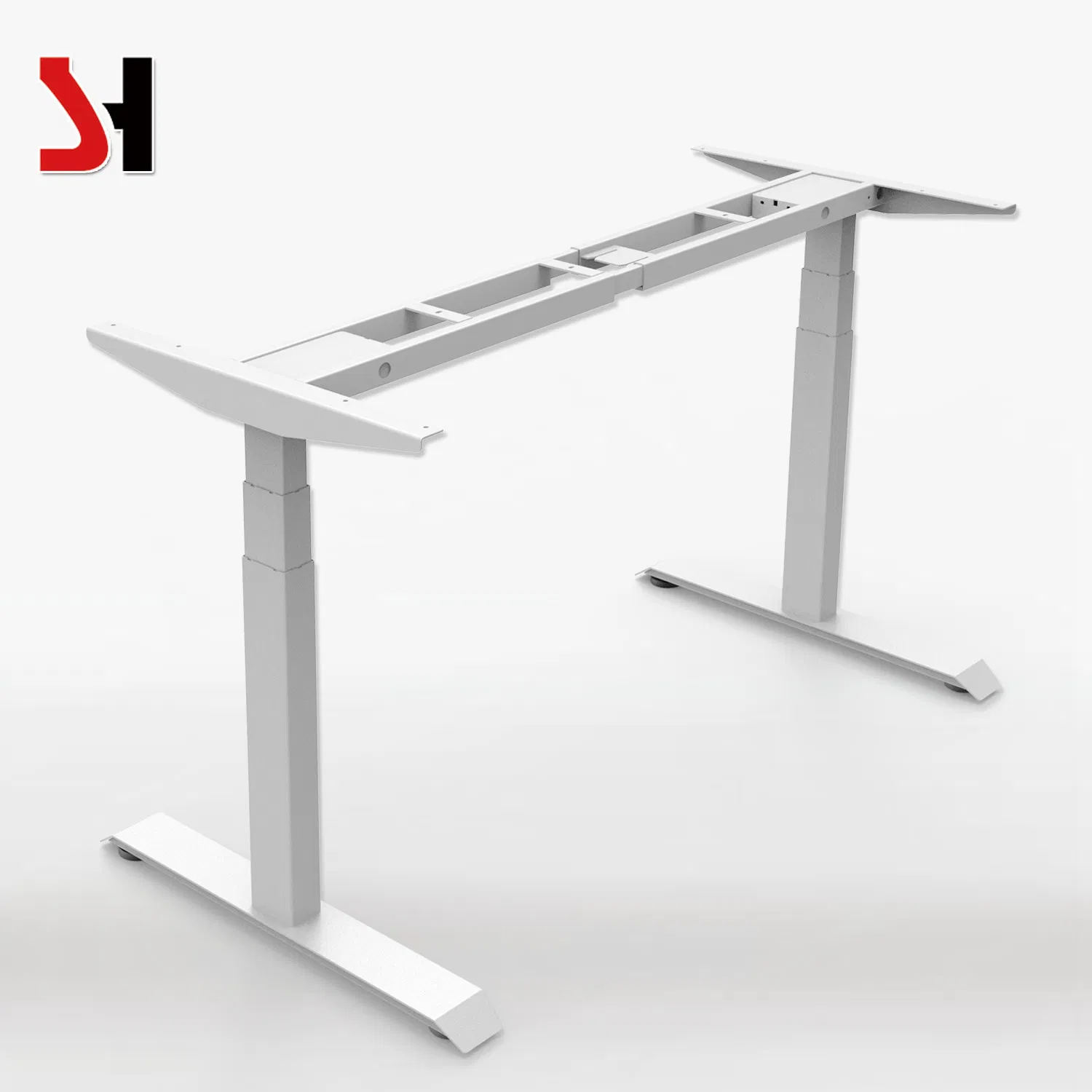

| Product Name | Dual Motor Metal Height Adjustable Desk Frame |
| MOTOR | |
| Motor Quantity | Two |
| Working Noise | 40 - 50 dB |
| Each Motor Rated Power | 70 W |
| LIFT COLUMN | |

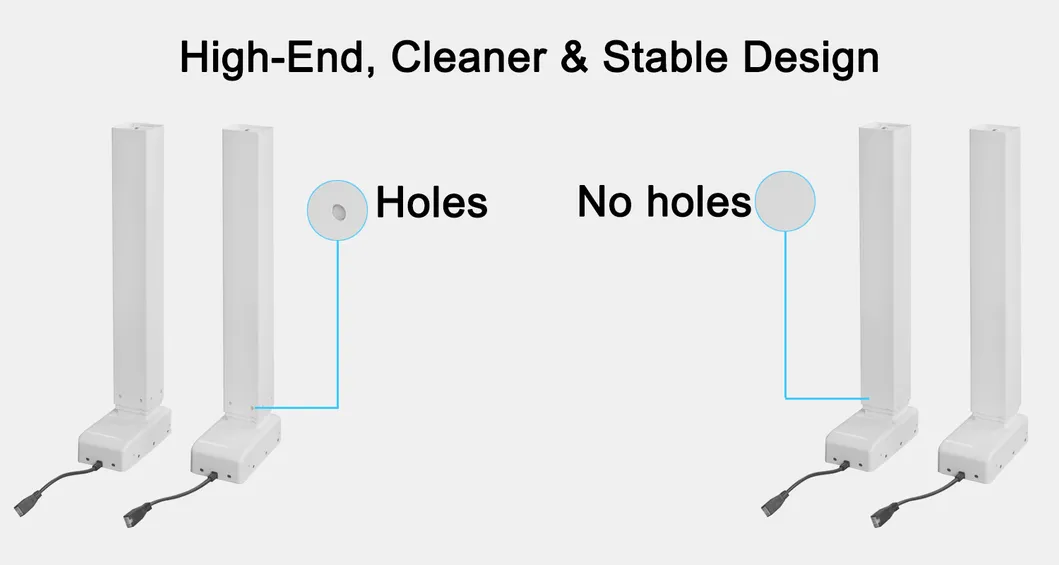

| Lift Leg Style | 3 stages; Upward; Without Hole |
| Lift Tube Material | Carbon Steel Q235 |
| Lift Tube Size | 80*50*1.5 / 75*45*1.5 / 70*40*2 mm; 70*70*1.5 / 65*65*1.5 / 60*60*2 mm; 90*60*1.5 / 85*55*1.5 / 80*50*2 mm 70*70*1.5 / 60*60*1.5 / 50*50*2 mm; |
| Lift Speed | 30 - 38 mm/s (1.2 - 1.5 inch per second) |
| Each Motor Load Capacity | 80 kg (167 lbs) |
| DESK FRAME | |
| Adjust Height | 700 - 1200 mm (27.56 - 47.24 inches) Without Tabletop |
| Frame Load Capacity | 140 kg (311 lbs) |
| Frame Width Range | 1005 - 1800 mm (39.57 - 70.87 inches) |
| Available Tabletop Size | Length From 1100 - 2000 mm (43 - 75 inches) |
| Depth From 600 - 800 mm (23.62 - 31.5 inches) | |
| Thickness Range 18 - 30 mm (0.7 - 1.2 inches) | |
| Foot Size | L 650 mm (25.6 inches), thickness 3 mm |
| Side Plate Size | L 575 mm (22.6 inches), thickness 2.5 mm |
| Color Available | White(RAL 9016), Black(RAL 9004), Grey(RAL9006) or (RAL 7045), Accept Customization |
| CONTROL BOX & HANDSET | |
| Voltage Available | 110 - 240 V |
| Duty Cycle | 2 min.on and 18 min.off |
| Bluetooth APP | Available |

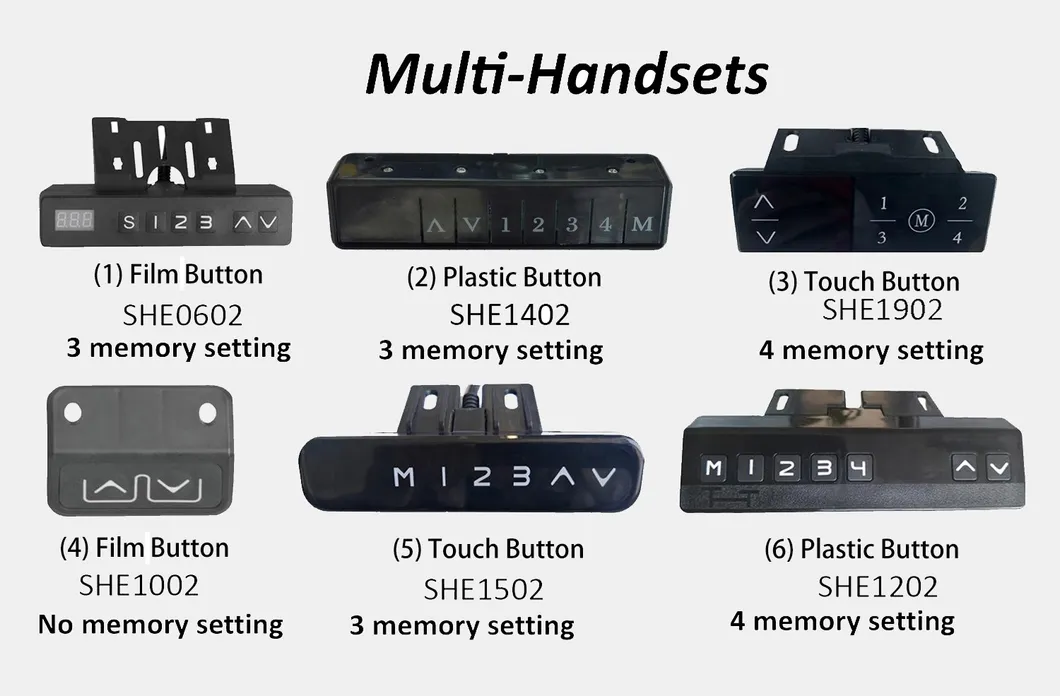

| Handset | LED Display; Memory Setting |
| OTHER | |
| Package Size | L1050 * W250 * H210 mm |
| Gross Weight | 28.5 kg (63 lbs) |
| Certification | ISO9001, CE, ROHS, SAA, CTUVUS, KC, BIFMA |
| Warranty | A: 3 years Warranty For Accessories Related To Electricity |
| B: 5 years Warranty For Other Parts. | |
